Material Handling Hose Manufacturer
ToyokawaFluid manufactures heavy-duty material handling hoses for sand, cement, gravel, fly ash, mineral powder, plastic pellets, grain, slurry and other abrasive bulk materials. We supply abrasion-resistant SBR, natural rubber and polyurethane hose options for suction, discharge, pneumatic conveying and custom dry-bulk transfer systems.
Built for Abrasive Bulk Transfer and Oilfield Support Operations
Material handling hose failure usually comes from internal abrasion, high-velocity impact, improper bend radius, pressure surge, vacuum collapse or static build-up. Our hose construction is selected around your real working conditions, not only a catalog size. You can specify tube compound, liner thickness, reinforcement, helix wire, cover rubber, end connection and branding for your operation.
Abrasion Resistant SBR Material Handling Hose
Bulk Material Handling Hose

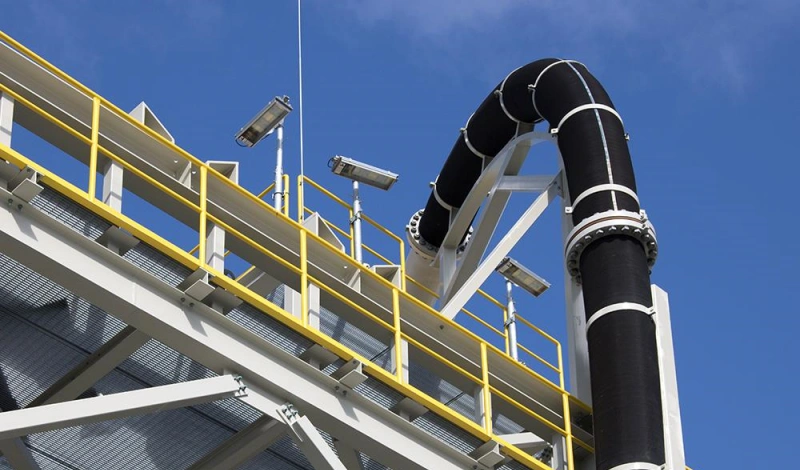

Custom Material Handling Hoses
Hand Built Material Handling Hoses
Material Handling Hose Options
Polyurethane Hose
Abrasion Resistant Sbr Material Handling Hose
Pvc Material Handling Hose
Hot Air Blower Hose
Material Handling Hose Specification
| Hose Type | Recommended Tube / Liner | Reinforcement | Typical Materials Handled |
|---|---|---|---|
| Abrasion Resistant SBR Material Handling Hose | Black abrasion-resistant SBR rubber; thicker liner optional | Textile plies, steel wire or helix depending on suction/pressure | Sand, cement, gravel, dry powder, mineral aggregate |
| Bulk Material Handling Hose | Natural rubber, SBR or conductive tube | Textile reinforcement and optional helix/static wire | Cement, fly ash, grain, pellets, powder, limestone |
| Custom Material Handling Hoses | SBR, NR, PU, UPE or special compound by medium | Built to working pressure/vacuum/bend radius requirements | Special slurry, abrasive solids, hot/dry materials |
| Hand Built Material Handling Hoses | Heavy-gauge abrasion liner | Hand-built body with engineered reinforcement | Large-volume sand, cement, slurry, aggregate |
| Polyurethane Hose | PU liner with high tear and puncture resistance | Spiral or flexible reinforcement | Silica dust, grain, wood chips, plastic pellets |
| Cement / Concrete Material Hose | Abrasion-resistant rubber liner | High-tensile textile or steel reinforcement | Concrete, grout, plaster, cement slurry, dry cement |
| Sandblast Hose | High abrasion rubber tube | 2-ply or 4-ply textile reinforcement | Sand, steel shot, corundum, blast media |
| Hot Air Blower Hose | Heat-resistant rubber or fabric construction | Heat-stable reinforcement | Hot air, dry particles, drying systems |
Advanced Material Handling Hose Manufacturer
ToyokawaFluid, founded in 2008, boasts a formidable production capacity and focuses on R&D and production of material handling hoses.
Using modern equipment and continuous R&D, we deliver durable hoses built for abrasive materials, high pressure, and demanding industrial environments worldwide.
Why Choose ToyokawaFluid as Your Material Handling Hose Manufacturer
Advanced Manufacturing Equipment
Efficient German and American weaving, winding and spiral machines, UNIFLEX crimping, cooling system, innovative large-scale hose machines, industry-leading.
High Production Capacities
Our factory boasts extremely high production capacities, manufacturing a range of hoses, including large-caliber wire-wrapped oil drilling hoses at 1000 meters per day and hydraulic hoses at 120,000 meters per day.
Reliable Quality
Our company proudly possesses certifications from DNV MED, CCS, ABS, and API, underscoring our unwavering commitment to delivering products of exceptional quality and reliability.
Certificates
Material Handling Hose Applications

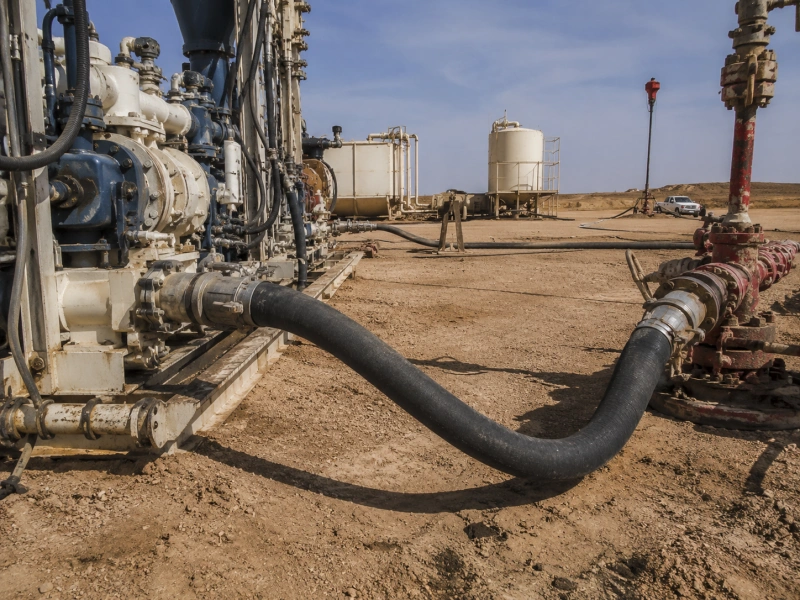

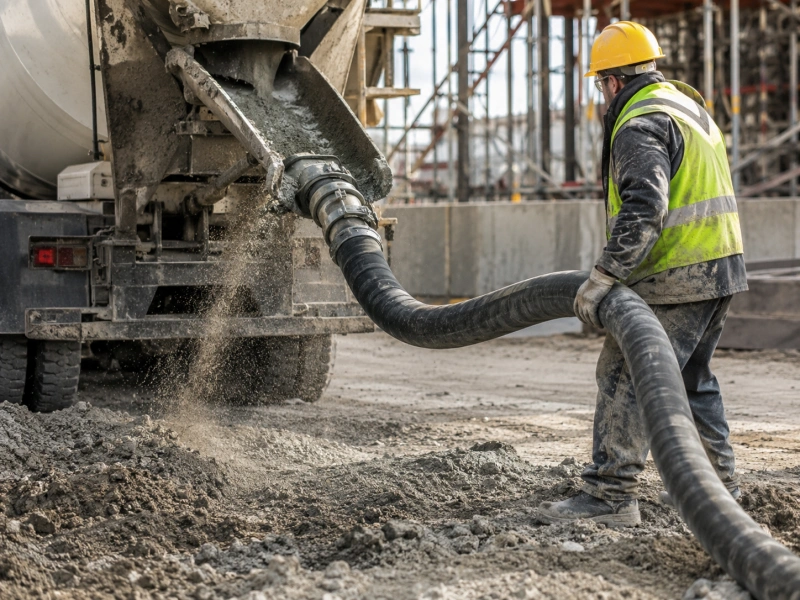

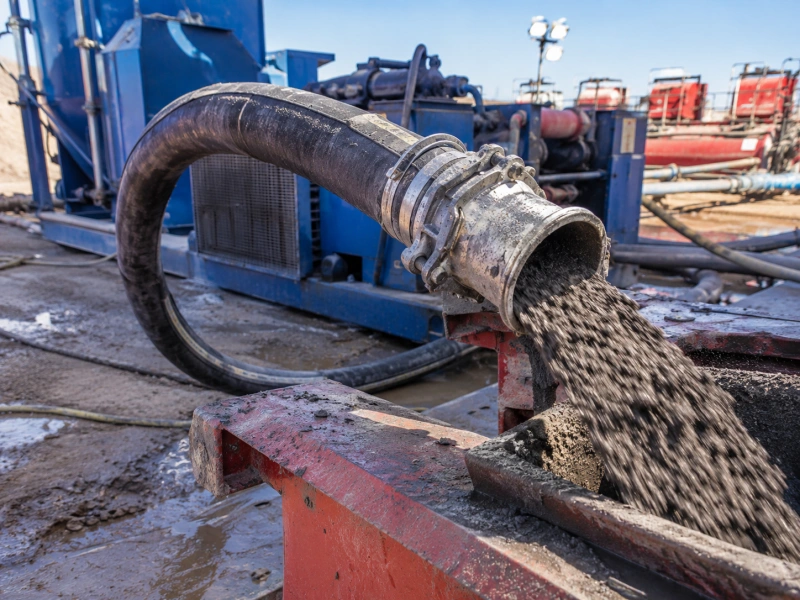

Use our material handling hoses for sand and gravel transfer, cement and concrete delivery, fly ash unloading, silica dust collection, barite and bentonite powder transfer, mineral slurry, grain handling, plastic pellet conveying, hot air blower service, vacuum loading and oilfield cementing or fracking support operations.
FAQ of Material Handling Hose
What is a material handling hose?
A material handling hose is an industrial hose designed to move abrasive or bulk solid materials such as sand, cement, gravel, fly ash, grain, plastic pellets, mineral powder and slurry through suction, discharge or pneumatic conveying systems.
What materials can ToyokawaFluid material handling hoses transfer?
They can be designed for sand, gravel, cement, concrete, fly ash, silica, barite, bentonite, mineral powder, grain, pellets, wood chips, slurry and other abrasive or dry bulk materials.
How do I choose the right material handling hose?
To select the correct hose, confirm the material name, particle size, abrasiveness, moisture level, flow velocity, working pressure, vacuum requirement, operating temperature, bend radius, installation layout, required end fittings and whether anti-static construction is needed. For severe abrasion, choose a thicker SBR, natural rubber or PU liner. For suction service, add helix reinforcement. For dry powders, confirm electrical continuity and grounding requirements.
Is SBR good for abrasive material handling?
SBR is widely used for abrasion-resistant material handling hoses because it offers a strong balance of wear resistance, flexibility and cost. For extremely severe abrasion, a thicker liner, natural rubber or polyurethane option may be considered.
Can you manufacture custom material handling hoses?
Yes. ToyokawaFluid can customize hose ID, length, tube compound, liner thickness, reinforcement, static-control design, working pressure, vacuum capability, cover marking, fittings and packaging for OEM or project use.
Do dry bulk transfer hoses need anti-static design?
Dry powders and granular materials may generate static electricity during high-velocity transfer. For cement, grain, mineral powder or plastic pellets, specify static-dissipating, conductive or grounding-wire construction when required by your safety system.
Can material handling hose work under vacuum?
Yes, if the hose is built for suction service. A helix wire or other structural reinforcement helps prevent collapse under negative pressure. Always confirm the required vacuum level before ordering.
What information is needed for a quotation?
Please provide conveyed material, hose ID, length, working pressure, vacuum level, temperature, bend radius, end fittings, quantity, certification or inspection needs, and photos or drawings if available.
Want to Speak to a Professional?
Request a Material Handling Hose Quote
For a fast quotation, send: conveyed material, hose ID, total length, working pressure, vacuum level, temperature, bend radius, end fittings, quantity, certification or inspection requirements, and photos or drawings if available.
